Grids of recent runs done with GEMCLIM

NOTE: For the following grids only every 5th line is displayed!!!

In all images, the thick red line indicates the model grid equator. The thick black lines deliminate the high (constant) resolution areas in LAM (LU) or Variable Resolution (GV) modes. In the images for the LAM-mode configurations, the driving boundary information are applied in the area between the thick black lines and the dashed black lines; the blending/merging areas for the LAM configurations are between the dashed and dotted black lines.

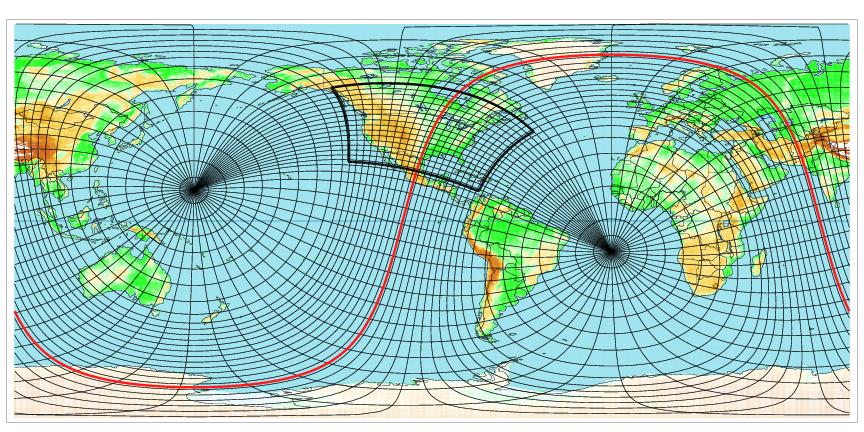

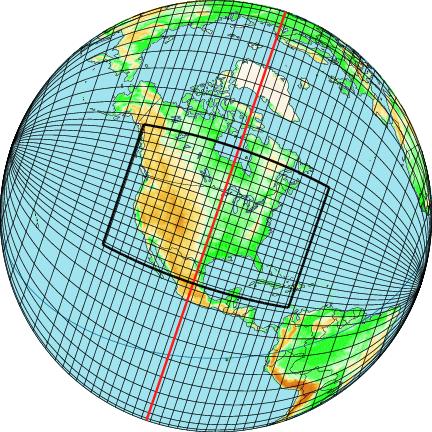

sgmip2r04:

Grd_typ_S	=	'GV'	,
Grd_ni	=	304	, Grd_nj	=	204	,
Grd_nila	=	79	, Grd_njla	=	110	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_dxmax	=	1.5	, Grd_dymax	=	1.5	,
Grd_xlon1	=	-94.10	, Grd_xlat1	=	41.20	,
Grd_xlon2	=	-87.00	, Grd_xlat2	=	53.50	,

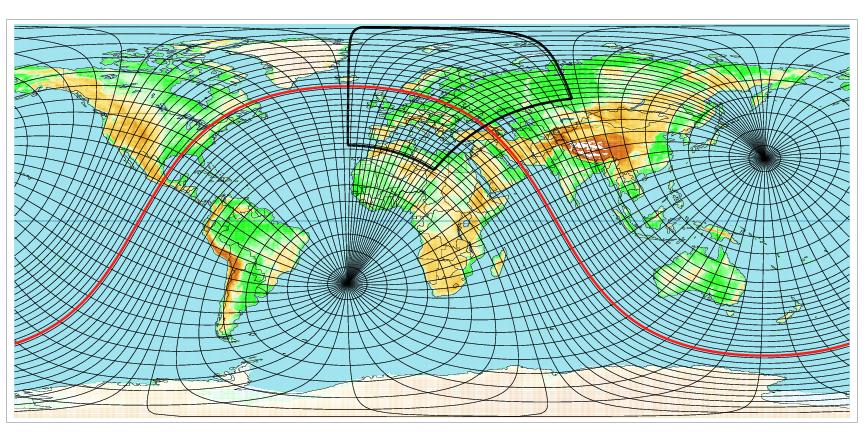

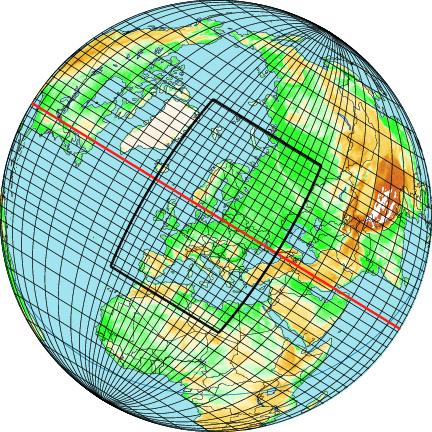

sgmip2r06:

Grd_typ_S	=	'GV'	,
Grd_ni	=	304	, Grd_nj	=	204	,
Grd_nila	=	79	, Grd_njla	=	110	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_dxmax	=	1.5	, Grd_dymax	=	1.5	,
Grd_xlon1	=	18.10	, Grd_xlat1	=	56.00	,
Grd_xlon2	=	71.50	, Grd_xlat2	=	0.00	,

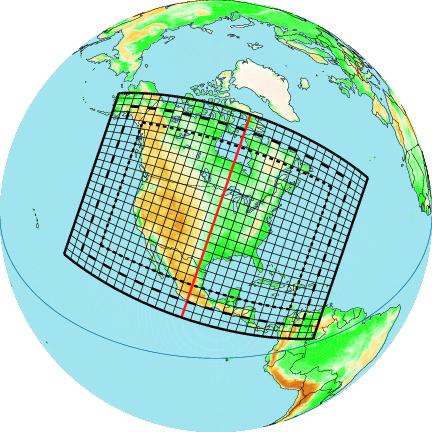

lam04_na:

Grd_typ_S	=	'LU'	,
Grd_ni	=	119	, Grd_nj	=	150	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	60	, Grd_jref	=	75	,
Grd_lonr	=	180.0	, Grd_latr	=	-0.25	,
Grd_xlon1	=	-94.10	, Grd_xlat1	=	41.20	,
Grd_xlon2	=	-87.00	, Grd_xlat2	=	53.50	,

Glb_pil	=	10	, Hblen	=	10	,

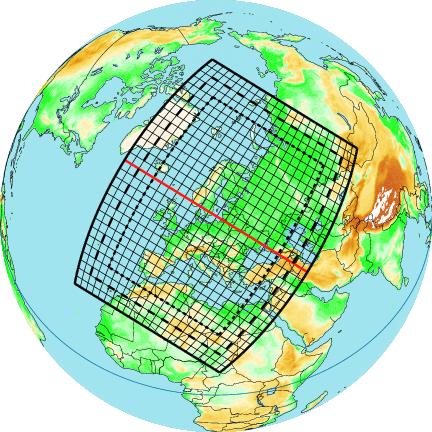

lam05_eu:

Grd_typ_S	=	'LU'	,
Grd_ni	=	119	, Grd_nj	=	150	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	60	, Grd_jref	=	75	,
Grd_lonr	=	180.0	, Grd_latr	=	-0.25	,
Grd_xlon1	=	18.10	, Grd_xlat1	=	56.00	,
Grd_xlon2	=	71.50	, Grd_xlat2	=	0.00	,

Glb_pil	=	10	, Hblen	=	10	,

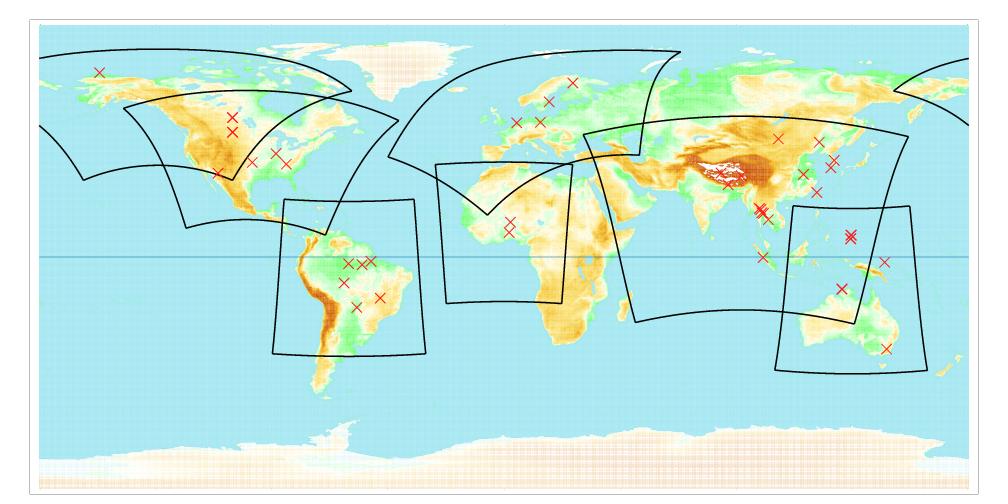

ICTS:

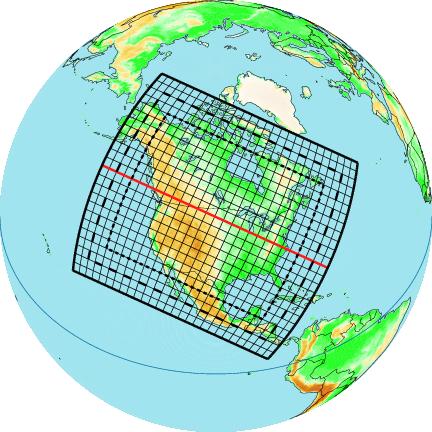

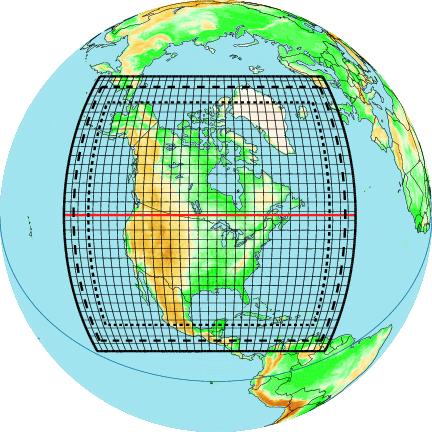

lam_NA and lam_NA_v330_new:

Grd_typ_S	=	'LU'	,
Grd_ni	=	140	, Grd_nj	=	120	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	71	, Grd_jref	=	61	,
Grd_lonr	=	180.0	, Grd_latr	=	0.00	,
Grd_xlon1	=	260.0	, Grd_xlat1	=	47.0	,
Grd_xlon2	=	305.0	, Grd_xlat2	=	16.0	,

Glb_pil	=	10	, Hblen	=	10	,

lam_NA_ERA40_0.5deg:

Grd_typ_S	=	'LU'	,
Grd_ni	=	170	, Grd_nj	=	158	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	11	, Grd_jref	=	11	,
Grd_lonr	=	140.5	, Grd_latr	=	-33.5	,
Grd_xlon1	=	-90.00	, Grd_xlat1	=	50.00	,
Grd_xlon2	=	0.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	10	, Hblen	=	10	,

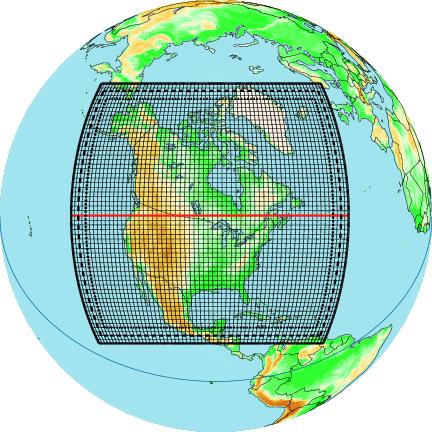

lam_NA_ERA40_0.25deg:

Grd_typ_S	=	'LU'	,
Grd_ni	=	324	, Grd_nj	=	300	,
Grd_dx	=	0.25	, Grd_dy	=	0.25	,
Grd_iref	=	13	, Grd_jref	=	13	,
Grd_lonr	=	140.5	, Grd_latr	=	-33.5	,
Grd_xlon1	=	-90.00	, Grd_xlat1	=	50.00	,
Grd_xlon2	=	0.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	10	,

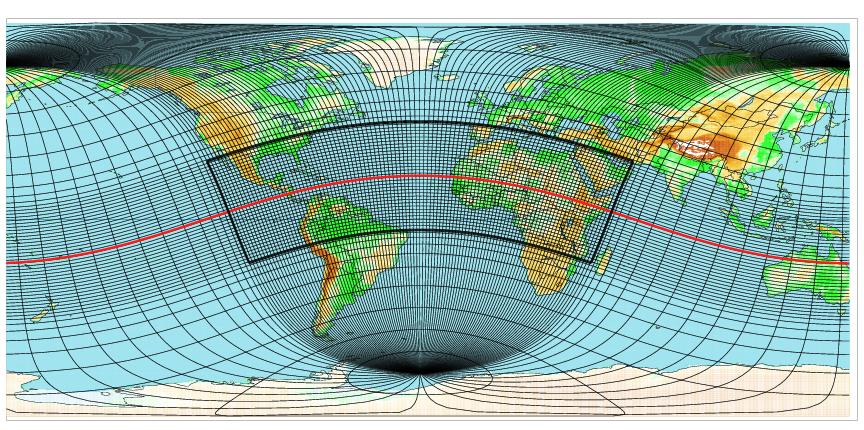

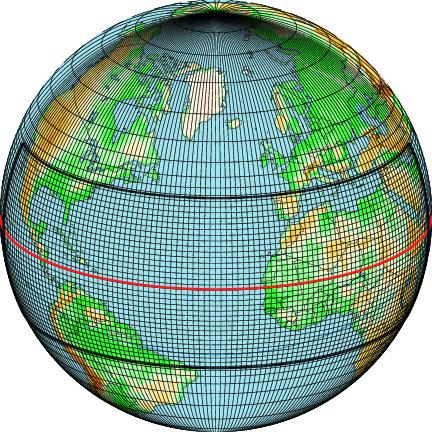

hurr_stretched_0.3:

Grd_typ_S	=	'GV'	,
Grd_ni	=	662	, Grd_nj	=	261	,
Grd_nila	=	533	, Grd_njla	=	167	,
Grd_dx	=	0.3	, Grd_dy	=	0.3	,
Grd_dxmax	=	2.0	, Grd_dymax	=	2.0	,
Grd_xlon1	=	20.00	, Grd_xlat1	=	-30.00	,
Grd_xlon2	=	0.00	, Grd_xlat2	=	60.00	,

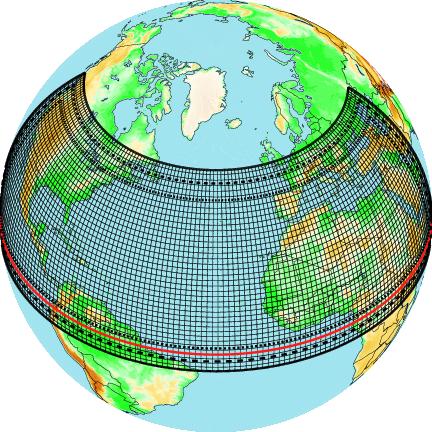

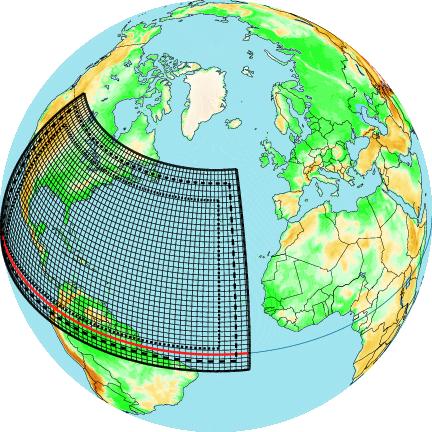

hurrlam_big_era40_v330 and hurrlam_big_gem_v330:

Grd_typ_S	=	'LU'	,
Grd_ni	=	624	, Grd_nj	=	194	,
Grd_dx	=	0.3	, Grd_dy	=	0.3	,
Grd_iref	=	312	, Grd_jref	=	97	,
Grd_lonr	=	145.	, Grd_latr	=	23.	,
Grd_xlon1	=	0.00	, Grd_xlat1	=	0.0	,
Grd_xlon2	=	1.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	15	,

HURRLAM_Sm_v330:

Grd_typ_S	=	'LU'	,
Grd_ni	=	312	, Grd_nj	=	194	,
Grd_dx	=	0.3	, Grd_dy	=	0.3	,
Grd_iref	=	156	, Grd_jref	=	97	,
Grd_lonr	=	112.	, Grd_latr	=	23.	,
Grd_xlon1	=	0.00	, Grd_xlat1	=	0.00	,
Grd_xlon2	=	1.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	15	,

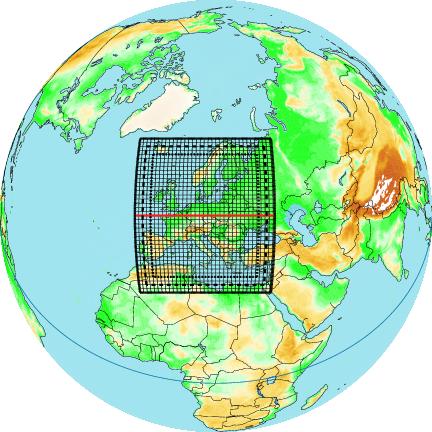

ENSEMBLES 0.22 degree:

Grd_typ_S	=	'LU'	,
Grd_ni	=	212	, Grd_nj	=	230	,
Grd_dx	=	0.22	, Grd_dy	=	0.22	,
Grd_iref	=	22	, Grd_jref	=	21	,
Grd_lonr	=	158.28	, Grd_latr	=	-20.68	,
Grd_xlon1	=	18.00	, Grd_xlat1	=	50.75	,
Grd_xlon2	=	108.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	10	, Hblen	=	10	,

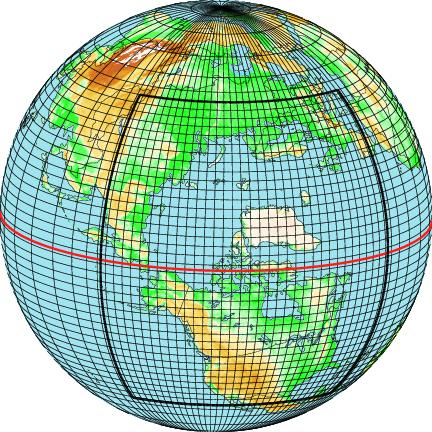

arctic_stretched_v330:

Grd_typ_S	=	'GV'	,
Grd_ni	=	325	, Grd_nj	=	2044	,
Grd_nila	=	172	, Grd_njla	=	188	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_dxmax	=	2.0	, Grd_dymax	=	2.0	,
Grd_xlon1	=	72.00	, Grd_xlat1	=	-85.00	,
Grd_xlon2	=	30.00	, Grd_xlat2	=	-40.00	,

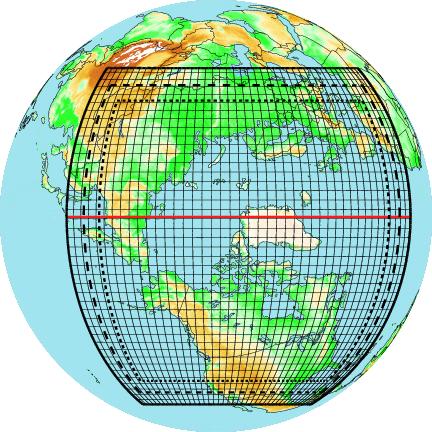

arctic_lam_v330_GEM and arctic_lam_v330_ERA40:

Grd_typ_S	=	'LU'	,
Grd_ni	=	216	, Grd_nj	=	208	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	3	, Grd_jref	=	102	,
Grd_lonr	=	137.5	, Grd_latr	=	-10.00	,
Grd_xlon1	=	60.00	, Grd_xlat1	=	90.00	,
Grd_xlon2	=	-30.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	10	,

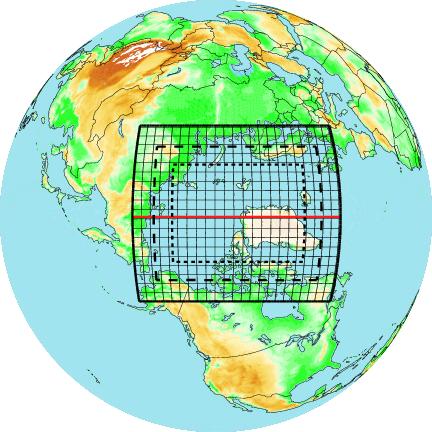

arctic_lam_v330_smallest:

Grd_typ_S	=	'LU'	,
Grd_ni	=	116	, Grd_nj	=	96	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	1	, Grd_jref	=	1	,
Grd_lonr	=	157.5	, Grd_latr	=	-23.0	,
Grd_xlon1	=	60. 00	, Grd_xlat1	=	90.00	,
Grd_xlon2	=	-30.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	10	,

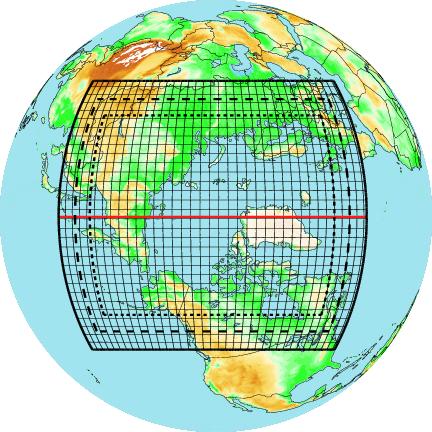

arctic_lam_v330_small:

Grd_typ_S	=	'LU'	,
Grd_ni	=	182	, Grd_nj	=	154	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	9	, Grd_jref	=	11	,
Grd_lonr	=	137.5	, Grd_latr	=	-33.0	,
Grd_xlon1	=	60.00	, Grd_xlat1	=	90.00	,
Grd_xlon2	=	-30.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	10	,

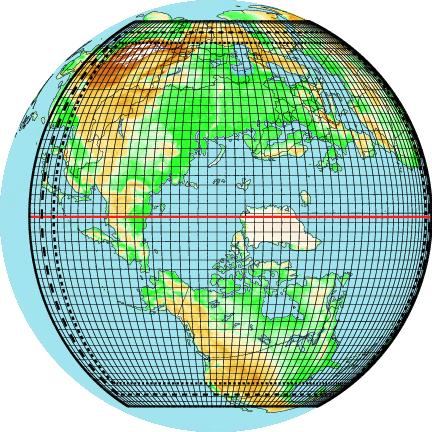

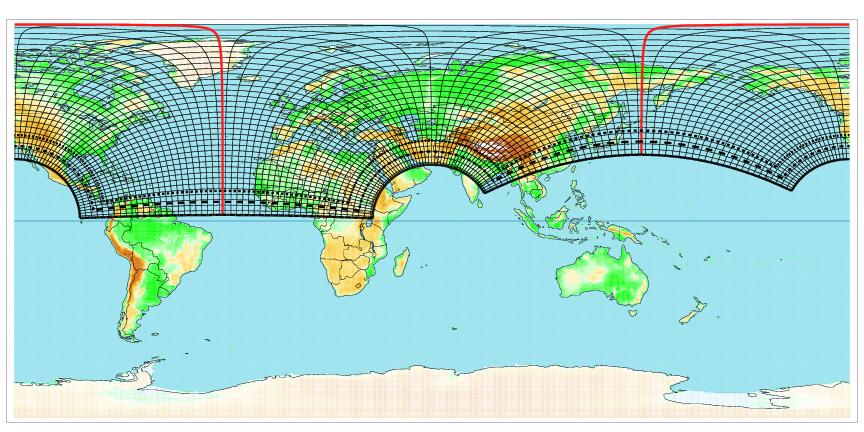

arctic_lam_v330_Biggest3 and arctic_lam_v330_Biggest4:

Grd_typ_S	=	'LU'	,
Grd_ni	=	294	, Grd_nj	=	252	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	35	, Grd_jref	=	104	,
Grd_lonr	=	137.5	, Grd_latr	=	-10.0	,
Grd_xlon1	=	60.00	, Grd_xlat1	=	90.00	,
Grd_xlon2	=	-30.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	10	,

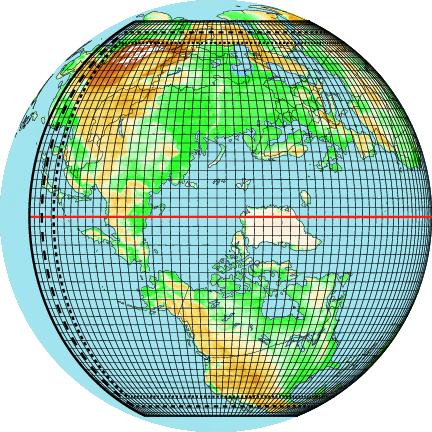

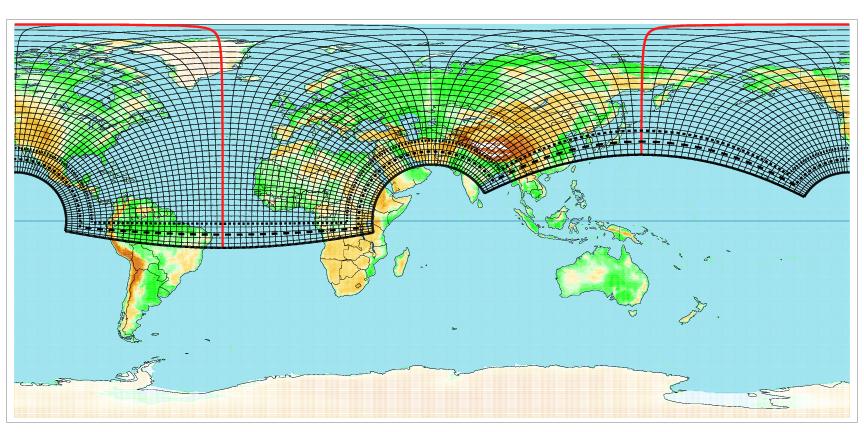

arctic_lam_v330_Biggest:

Grd_typ_S	=	'LU'	,
Grd_ni	=	324	, Grd_nj	=	264	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_iref	=	35	, Grd_jref	=	116	,
Grd_lonr	=	137.5	, Grd_latr	=	-10.0	,
Grd_xlon1	=	60.00	, Grd_xlat1	=	90.00	,
Grd_xlon2	=	-30.00	, Grd_xlat2	=	0.00	,

Glb_pil	=	12	, Hblen	=	10	,

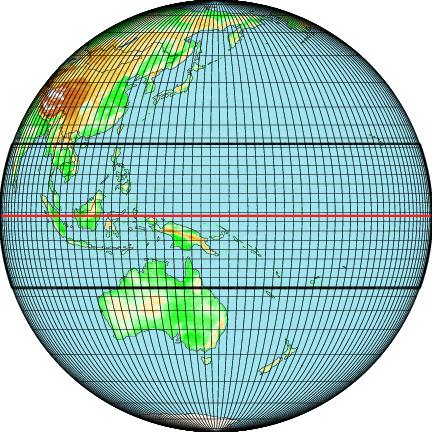

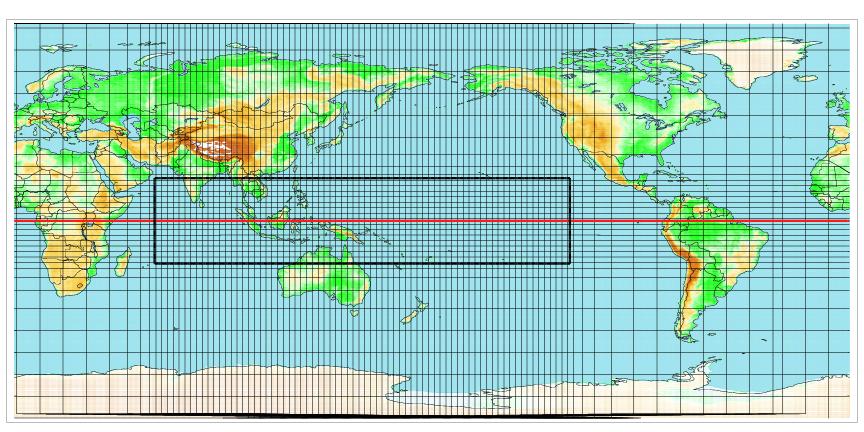

streched_PACIFIC_0.5:

Grd_typ_S	=	'GV'	,
Grd_ni	=	467	, Grd_nj	=	166	,
Grd_nila	=	360	, Grd_njla	=	80	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_dxmax	=	2.0	, Grd_dymax	=	2.0	,
Grd_xlon1	=	-210.	, Grd_xlat1	=	0.00	,
Grd_xlon2	=	-100.	, Grd_xlat2	=	0.00	,

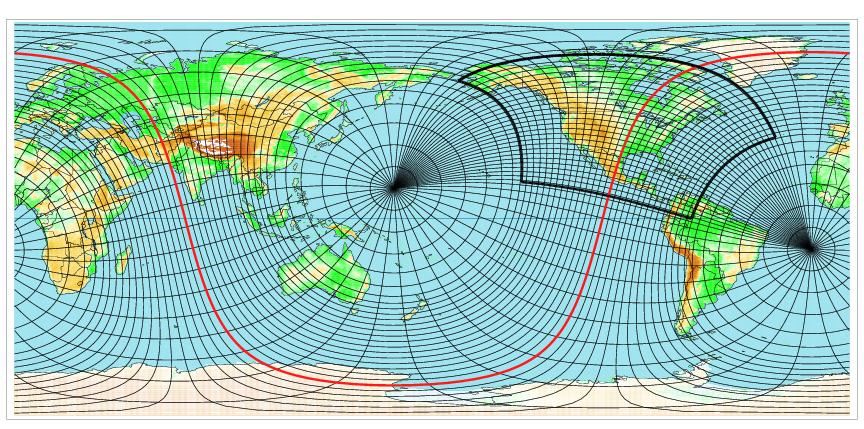

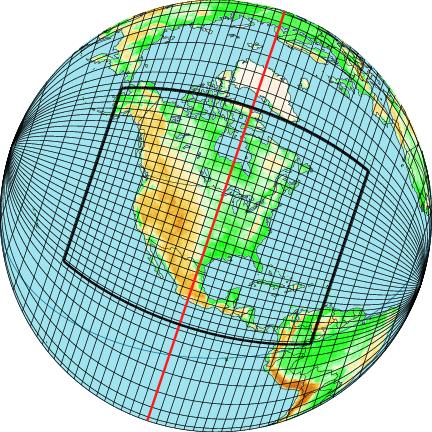

streched_N_AMERICA_0.5:

Grd_typ_S	=	'GV'	,
Grd_ni	=	295	, Grd_nj	=	220	,
Grd_nila	=	130	, Grd_njla	=	150	,
Grd_dx	=	0.5	, Grd_dy	=	0.5	,
Grd_dxmax	=	2.0	, Grd_dymax	=	2.0	,
Grd_xlon1	=	-94.	, Grd_xlat1	=	41.2	,
Grd_xlon2	=	-87.	, Grd_xlat2	=	53.5	,

Author: Katja Winger
Last update: November 2008
